PART 1: Create Header via Partial Design (SXA)

1. Go to Presentation → Partial Designs

Navigate:

/sitecore/content/YourSite/Presentation/Partial Designs

• Create a new Partial Design:
  Header

2. Add Header Rendering

Open the Header Partial Design:

• Click Edit
• Add rendering:
  • Your custom Header Rendering (or SXA Navigation + Image components)

Place it in a placeholder like:

headless-header

If using Image component:

• Click the component
• Click Edit Component Properties
• Select image field or media item

3. Assign Data Source

For your header rendering:

• Set Data Source to:

/sitecore/content/YourSite/Data/Header/Main Header

💡 This keeps your header reusable and centralized.

4. Create a Page Design

Go to:

/sitecore/content/YourSite/Presentation/Page Designs

• Create: Default Page Design

5. Attach Partial Design to Page Design

Inside Page Design:

• Add your Header Partial Design
• Also add:
  • Footer (optional)
  • Main content partial

Now your structure becomes:

Page Design

├── Header (Partial Design)

├── Main Content

└── Footer

6. Assign Page Design to Pages

Go to your page (e.g., Home):

• Open Experience Editor
• Assign:
  👉 Default Page Design

Now header is global across all pages using that design.

7: Save & Publish

Click:

• ✔ Save
• ✔ Publish

PART 2: Headless Layout Output

When using Layout Service:

/sitecore/api/layout/render/jss?item=/&sc_lang=en

You’ll now see:

{

  "route": {

    "placeholders": {

      "header": [

        {

          "componentName": "Header",

          "fields": {

            "logo": {...},

            "navigationLinks": [...]

          }

        }

      ]

    }

  }

}

Partial Design content is merged automatically into layout output.

PART 3: Next.js Implementation

1. Header Component

const Header = ({ fields }) => {

  return (

    <header className="header">

      <img src={fields.logo?.value?.src} alt="logo" />



      <nav>

        {fields.navigationLinks?.map((item, i) => (

          <a key={i} href={item.url}>

            {item.title}

          </a>

        ))}

      </nav>

    </header>

  );

};

2. Register Component

import Header from './components/Header';
export const components = {
  Header,
};

3. Render Header Placeholder

In your main layout:

<Placeholder name="header" rendering={rendering} />

4. PartialDesignDynamicPlaceholder Component

In SXA Headless:

• Partial Designs use dynamic placeholders
• Sitecore injects a system component:

PartialDesignDynamicPlaceholder

But your Next.js app doesn’t have this component registered

Create this file:

/src/components/PartialDesignDynamicPlaceholder.tsx

Add this code:

const PartialDesignDynamicPlaceholder = ({ rendering }: any) => {

  if (!rendering?.placeholders) return null;



  return Object.keys(rendering.placeholders).map((name) => (

    <Placeholder key={name} name={name} rendering={rendering} />

  ));

};

Register Component (VERY IMPORTANT)

Open:

/src/lib/componentFactory.ts

Add:

import PartialDesignDynamicPlaceholder from '../components/PartialDesignDynamicPlaceholder';

export const components = {
  PartialDesignDynamicPlaceholder,
};

Name must EXACTLY match:

PartialDesignDynamicPlaceholder

Next.js + Sitecore JSS Project Structure

Here’s a real-world folder structure 👇

/src
├── components
│ ├── Header.tsx
│ ├── Footer.tsx
│
├── lib
│ ├── componentFactory.ts
│
├── Layout.tsx
├── pages
│ ├── [[...path]].tsx
│
├── styles
│ ├── global.css

Header Component

// src/components/Header.tsx

import Link from 'next/link';

const Header = ({ rendering }) => {
  const fields = rendering?.fields;

  return (
    <header className="header">
      <div className="logo">
        <img src={fields?.logo?.value?.src} />
      </div>

      <nav>
        {fields?.navigationLinks?.map((item, i) => (
          <Link key={i} href={item.url}>
            {item.title}
          </Link>
        ))}
      </nav>
    </header>
  );
};

export default Header;

Layout File

// src/Layout.tsx

import { Placeholder } from '@sitecore-jss/sitecore-jss-nextjs';

const Layout = ({ layoutData }) => {
  const { route } = layoutData;

  return (
    <>
      <Placeholder name="headless-header" rendering={route} />
      <Placeholder name="main" rendering={route} />

      <Placeholder name="headless-footer" rendering={route} />
    </>
  );
};

export default Layout;

Verify Layout Placeholder

Make sure your layout has:

<Placeholder name="headless-header" rendering={route} />
<Placeholder name="headless-footer" rendering={route} />

Restart Next.js App

npm run dev

or

yarn dev

or

jss start:connected

WHAT THIS COMPONENT DOES

It dynamically renders nested placeholders like:

"placeholders": {
  "headless-footer": [
    {
      "componentName": "Container",
      "placeholders": {
        "container-1": [...]
      }
    }
  ]
}

HOW THIS WORKS (IMPORTANT)

Without Partial Design:

• Header added manually to each page

With Partial Design:

• Header injected automatically via Page Design
• Fully reusable and maintainable

KEY BENEFITS

✔ One place to manage header
✔ No duplication
✔ Clean Helix architecture
✔ Works perfectly with Headless + Next.js
✔ Easy personalization later

PRO TIP (Very Important)

If you're using SXA Headless:

• Always use:
  • Partial Design for global UI (Header/Footer)
  • Page Design for structure
  • Data folder for content

FINAL ARCHITECTURE

Data

└── Header Content

Presentation

├── Partial Designs

│ └── Header

│

├── Page Designs

│ └── Default

│

└── Renderings

└── Header Component

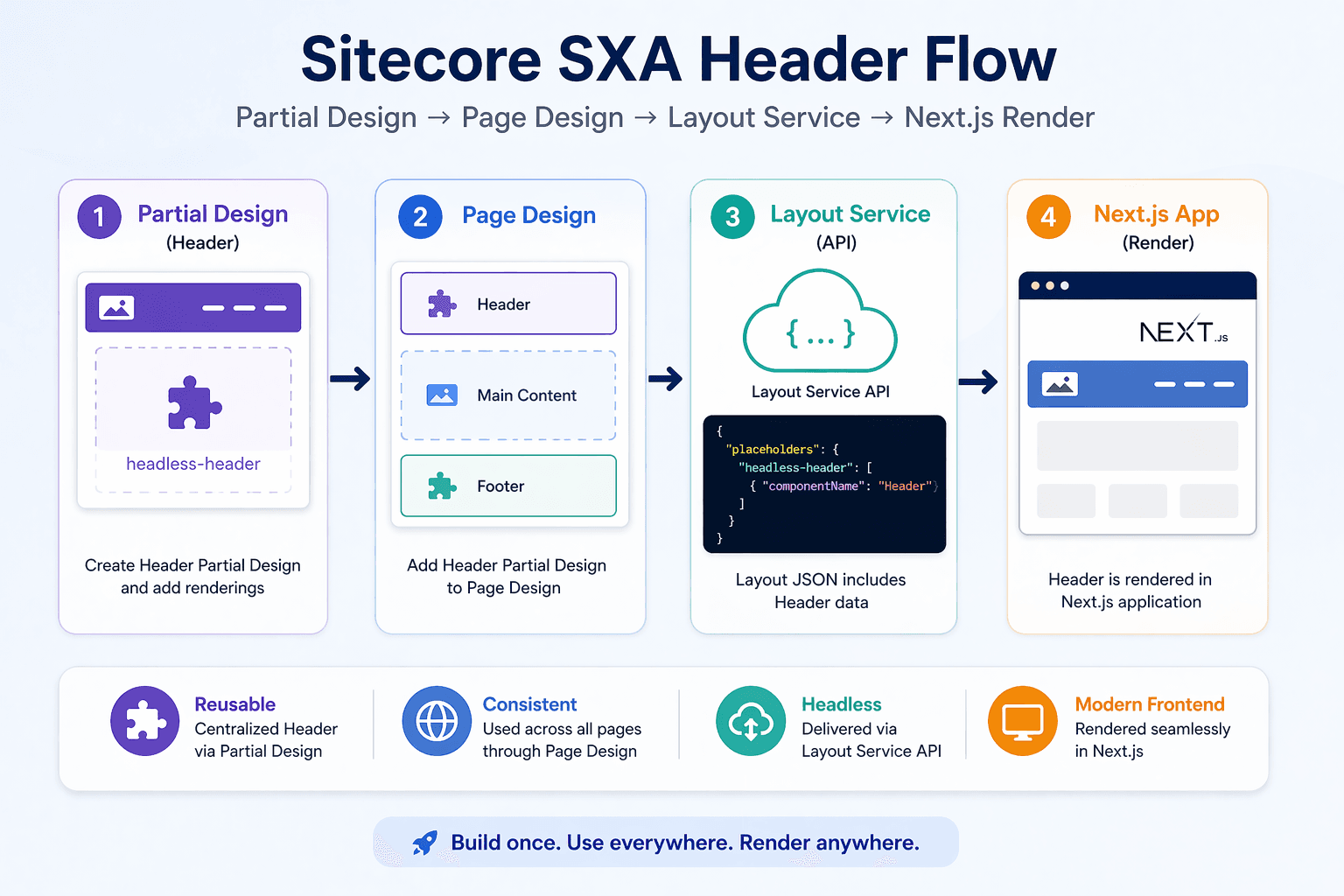

FINAL FLOW (SIMPLE)

1. Create Header → Partial Design
2. Attach to Page Design
3. Assign Page Design to pages
4. Layout Service exposes header
5. Next.js renders <Placeholder name="header" />

Common Mistakes (Avoid These)

• Not assigning Page Design
• Missing placeholder (header) in layout
• Component not registered in factory
• Wrong datasource path

Happy Coding!
